Sharp Industries’ manual milling machines are designed to handle a variety of machining tasks with precision and efficiency. Our milling machines, including knee mills, bed mills, vertical/horizontal mills, and more, are built for durability and performance, making them suitable for a wide range of industrial applications.

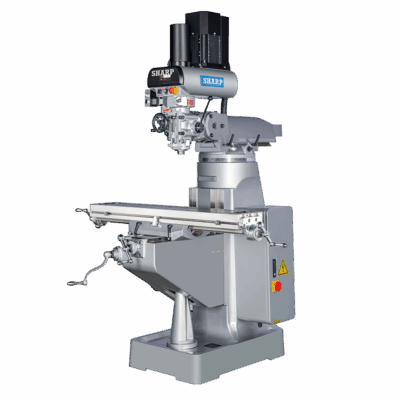

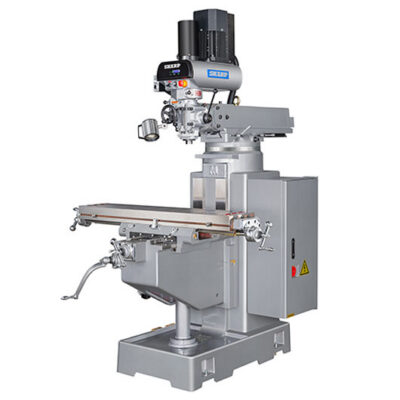

SHARP Industries has improved upon the original design of knee mills to include features such as Double Nut Backlash Eliminator and Supporting Bearing at the bottom of the motor shaft. Models like the LMV-42 and TMV-DVS offer different sizes and configurations to meet diverse machining needs. These vertical knee mills provide accurate and reliable milling operations, making them an ideal choice for tool rooms, job shops, and production environments.
| Long. Travel | 30 in. |
|---|---|
| Cross Travel | 12 in. |
| Taper, HP | R-8, 3 hp |
| Slide Ways | Dove Tail |
| Spindle | Variable Speed |
| Long. Travel | 37 in. |
|---|---|
| Cross Travel | 12 in. |
| Taper, HP | R-8, 3 hp |
| Slide Ways | Dove Tail |
| Spindle | Digital Variable Speed |
| Long. Travel | 37 in. |
|---|---|
| Cross Travel | 12 in. |
| Taper, HP | R-8, 3 hp |
| Slide Ways | Dove Tail |
| Spindle | Variable Speed |
| Long. Travel | 39 in. |
|---|---|
| Cross Travel | 16.3 in. |
| Taper, HP | R-8, 3 hp |
| Slide Ways | Box Ways |
| Spindle | Variable Speed |
| Long. Travel | 39 in. |
|---|---|
| Cross Travel | 16.3 in. |
| Taper, HP | R-8, 3 hp |
| Slide Ways | Box Ways |
| Spindle | Digital Variable Speed |
| Long. Travel | 39 in. |
|---|---|
| Cross Travel | 16.3 in. |
| Taper, HP | NT-40, 5 hp |
| Slide Ways | Box Ways |
| Spindle | Variable Speed |
| Long. Travel | 40 in. |
|---|---|
| Cross Travel | 16 in. |
| Taper, HP | NT-40, 5 hp |
| Slide Ways | Box Ways |
| Spindle | Digital Variable Speed |

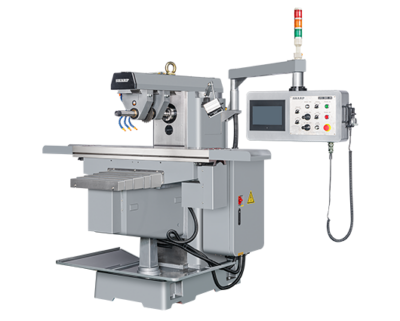

Our knee type horizontal milling machines come with universal tables that can perform gear cutting and keyway machining. These versatile machines, such as the UH-3, provide flexibility for various milling operations. They are built to handle demanding tasks with ease, ensuring consistent performance and precision.
| Long. Travel | 39.37 in. |
|---|---|
| Cross Travel | 15.74 in. |
| Taper, HP | #50, 7.5 hp |
| Slide Ways | Box Ways |

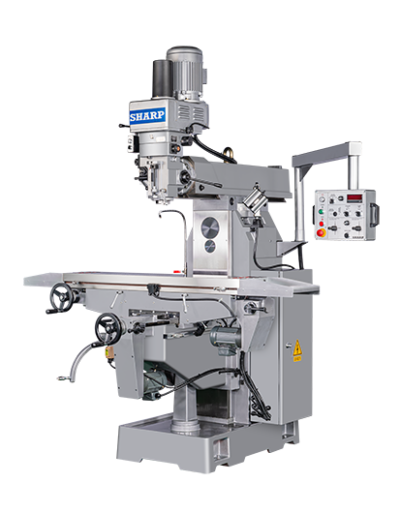

With two spindles on the same machine, our knee type vertical/horizontal milling machines can perform vertical and horizontal operations in one setup. This feature increases productivity and accuracy, making these machines ideal for maintenance tool rooms, job shops, or tool and die shops. Models like the VH-25 and VH-3 offer the versatility needed to tackle complex machining jobs efficiently.
| Long. Travel | 39.37 in. |
|---|---|
| Cross Travel | 15.74 in. |
| Vert. Taper, HP | #40, 5 hp |
| Horiz. Taper, HP | #40, 5 hp |
| Long. Travel | 39.37 in. |
|---|---|
| Cross Travel | 15.74 in. |
| Vert. Taper, HP | #40, 5 hp |
| Horiz. Taper, HP | #50, 7.5 hp |
For large workpieces and hard metal machining, our heavy-duty bed type vertical milling machines handle the job easily. Models like the KMA-1 and KMA-3 offer substantial travel ranges and high horsepower to tackle demanding tasks. These machines provide the strength and stability required for precise milling operations, making them suitable for heavy-duty applications.
| Long. Travel | 39 in. |
|---|---|
| Cross Travel | 15 in. |
| Vert. Head Travel | 19.7 in. |
| Taper, HP | #50, 10 hp |
| Long. Travel | 47.3 in. |
|---|---|
| Cross Travel | 17.7 in. |
| Vert. Head Travel | 21.8 in. |
| Taper, HP | #50, 15 hp |
| Long. Travel | 59 in. |
|---|---|
| Cross Travel | 23.5 in. |
| Vert. Head Travel | 27.6 in. |
| Vertical Taper, HP | #50, 17.5 hp |
| Long. Travel | 79 in. (99 in. opt) |
|---|---|
| Cross Travel | 31.5 in. |
| Vert. Head Travel | 27.6 in. |
| Taper, HP | #50, 17.5 hp |
Our bed type vertical/horizontal milling machines feature unique vertical and horizontal heads for greater productivity in complicated machining jobs. Models like the KMA-3H and KMA-5H provide the versatility needed for complex operations, combining the capabilities of vertical and horizontal milling in one machine. This design ensures that even the most challenging projects can be completed with precision and efficiency.
| Long. x Cross Travel | 59 (79 Opt) x 23.6 in. |
|---|---|
| Vert. Head Travel | 27.5 in. |
| Horiz. Head Travel | 25.5 in. (up, down) |
| Vert., Horiz. Taper, HP | #50, #50, 17.5 HP, 7.5 HP |
| Long. Travel | 79 in. (99 in. opt) |
|---|---|
| Cross Travel | 31.5 in. |
| Vert. Head Travel | 27-9/16 in. |
| Taper, HP | #50, #50, 17.5 HP, 7.5 HP |
Choosing Sharp Industries for your manual milling machine needs means investing in machines that offer precision, durability, and advanced performance. Our manual mills, including knee mills, bed mills, and vertical/horizontal mills, are designed with high-quality materials and innovative technology, ensuring reliable and efficient operations for various industrial applications. Whether you are working on small intricate parts or large complex components, Sharp’s milling machines provide the flexibility and accuracy you need to achieve the best results.
If you have any questions about our manual milling machine models or need assistance selecting the right machine for your specific requirements, please contact us. Our team of experts is ready to help you find the perfect solution to enhance your machining capabilities. We offer comprehensive support and service to ensure that your investment in Sharp Industries’ milling equipment provides long-lasting value and optimal performance.
