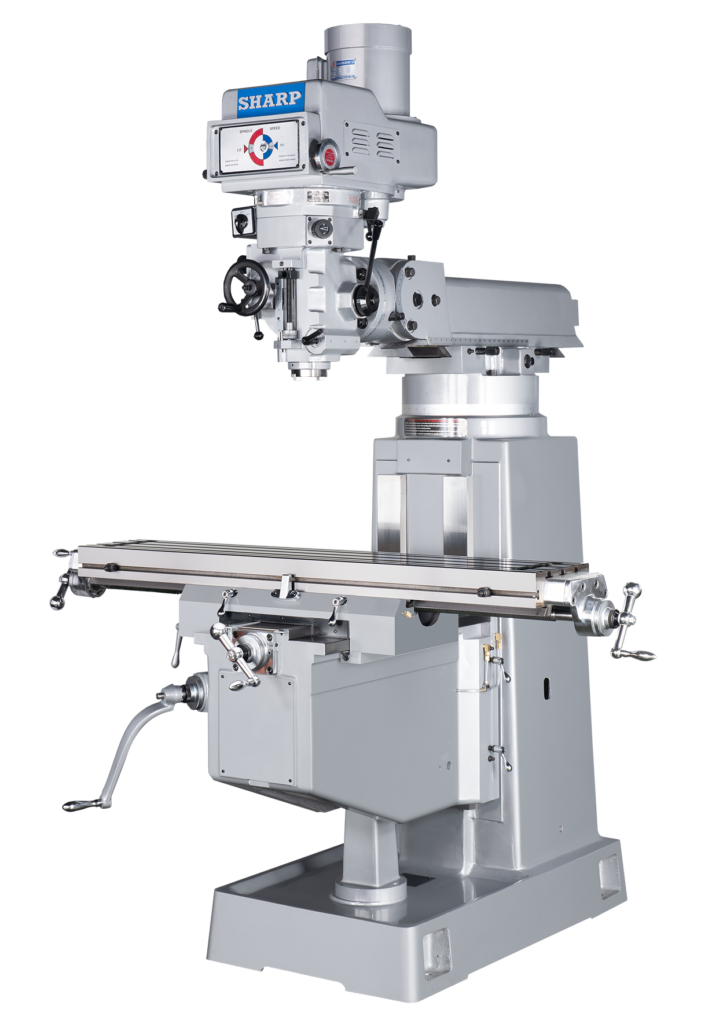

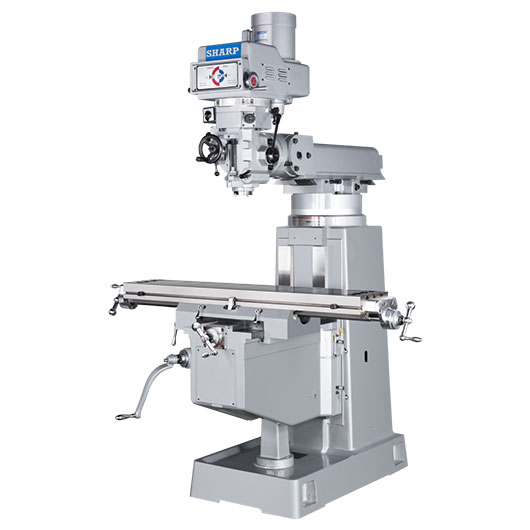

TMV
| Long. Travel | 39 in. |
|---|---|
| Cross Travel | 16.3 in. |
| Taper, HP | R-8, 3 hp |
| Slide Ways | Box Ways |
| Spindle | Variable Speed |
Overview
This model is constructed with box ways instead of dove tail ways. The model has many unique features compared with most of the similar machines on the market.
The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed.
Tapered gibs installed on the ways allows easy adjustment for long term usage.
The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle.
The bottom of the saddle, instead of the top of the knee ways, which rides on the knee, is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
- 10 x 54 ins table, 16.3 x 39 ins travel
- R-8 spindle, 3 hp , variable speed (60-4,500 rpm)
- Spindle runout of no more than 0.0002 ins TIR
- Hardened and ground box ways, column, base
- Head tilt side to side, up and down
- One shot lubrication with back flow valve
- Tapered gibs for adjustment
Features
Box Ways
Hardened and Ground box ways on the vertical column and base offer extra support under heavy cutting conditions.
Patented Knuckle Head design
The New Patented Knuckled-Head Design prevents the head from slipping. The Sharp mills have a knuckle which uses 6 bolts, 3 each side, fitted into circular T-slots with matching nuts securing them from the outside. It locks the head in place for better accuracy and performance than the old design using only 3 bolts to squeeze the casting to hold the head without the T-slots. (Patent No. 5044054)
Patented sliding vari disc movement
Easy Access Lubricating Shaft is designed with an oil channel in the center that is fed by a grease fitting at the lower end for longer motor shaft life. (Patent No. 2848)
Improved design of Backlash Eliminator
Backlash Eliminator By Double Nut Design replaces the older design that squeezes a split nut to get rid of backlash. Sharp is the first one to use a double nut design that keeps the feed screw in contact with a pair of bronze nuts. Using a custom tool supplied with the mill, the feed nuts are adjusted to control backlash and held tight with a retaining nut and locking ring.
Specs
| Capacity | Inch | Metric |
|---|---|---|
| Table Size | 10 x 54 in. | 254 x 1,371 mm |
| T-slots (No., Size, Pitch) | 3, 5/8, 2.5 in. | 3, 16, 63.5 mm |
| Table Travel : X Longitudinal | 39 in. | 990 mm |
| Table travel : Y Cross | 16.3 in. | 414 mm |
| Quill travel: Z Vertical | 5 in. | 127 mm |
| Ram Travel | 18.5 in. | 470 mm |
| Knee travel : Vertical | 15.3 in. | 388 mm |
| Spindle Center to Column | 9.8 - 28.3 in. | 248 - 718 mm |
| Spindle Nose to Table Top | 5.375 x 16.9 in. | 136 - 429 mm |
| Head, Spindle | Inch | Metric |
|---|---|---|
| Spindle Nose Taper | R-8 | |
| Spindle Variable Speed Range | 60-4500 rpm | 60-4500 rpm |
| Spindle Motor (220V/440V) | 3 HP | 2.25 KW |
| Quill Feed (Inch/Min)(3 speeds) | .0015, .003, .006 in. | .038, .076, .152 mm |
| Quill Diameter | 3.375 in. | 85.7 mm |
| Head Tilt Angle (L/R) | 90° | |
| Head Tilt Angle (Up/Down) | 45° |
| General | Inch | Metric |
|---|---|---|
| Floor Area (W x D x H) | 9.83 x 6.25 x 7.64 ft. | 2.99 x 1.9 x 2.32 M |
| Approximate Weight | 3,000 lbs. | 1,360 Kg. |
| Power Consumption (220V) | 3 KVA/8 amps | |
| Power Consumption (440V) | 3 KVA/4 amps | |
All specifications subject to change without notice. Please call to verify.
Accessories
Standard Accessories
- One Shot Lube System
- Hard-Chromed Ways
- Front and Rear Rubber Way Covers
- Tool box with tools
- Wired 220V or 440V.
Optional Accessories
- Auto Lube Pump with 2 Adjustments
- “Sharp” Power Table Feed with Safety Handle
- “Sharp” Power Cross Feed with Safety Handle
- “Sharp” Power Knee Feed with Safety Handle
- 6 in. “Kurt” Vise with Swivel Base
- Right Angle Milling Attachment with Arbor
- Drill Chuck & Drill Arbor
- 6 in. Riser Block
- Coolant System with Chip Pan (pump included
- “Maxi Torque Rite” Power Draw Bar
- Clamping Kit (52 pcs/Steel Rack)
- Halogen Work light
- CE mark
- 380V and 575V transformer
- UL components upgrade with electrical box
- UL compliance certificate under State of California
- Digital Readout System
