Vertical Machining Centers

TYPES

Box Way VMC

Box Way machines offer higher dynamic stiffness and superior vibration dampening characteristics than Liner Way machines. They can be used on severe machining applications. SHARP vertical machining centers models used induction hardened and precision ground box ways

  • Box Way

    SV-2414A-F

    Travel 24 x 14 x 18 in.
    Taper, RPM 40, 8k
    Tool Capacity 16 T
    Spindle Motor 15 HP
  • Box Way

    SV-2500-Series

    Travel 25 x 17 x 18, 23 in.
    Taper, RPM 40, 8k
    Tool Capacity 16 T, 24 T
    Spindle Motor 15 hp
  • Box Way

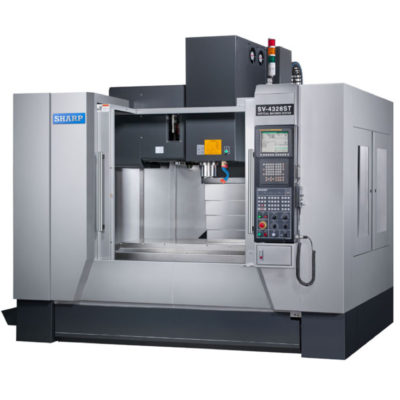

    SV-4328SX-F

    Travel 43 x 28 x 24 in.
    Taper, RPM 40, 12k
    Tool Capacity 24 T
    Spindle Motor 25 hp
  • Box Way

    SV-5128ST-F

    Travel 51 x 28 x 24 in.
    Taper, RPM 40, 10k
    Tool Capacity 24 T
    Spindle Motor 25 hp

Gear Head Box Way VMC

Geared Head models offer additional power to heavy cutting operations compare to belt driven spindle head. The gears increase torque at the spindle at both low and high speed.

  • CNC Machines

    SVG-6336A-F

    Travel 63 x 35 x 28 in.
    Taper, RPM 50, 6k
    Tool Capacity 32T
    Spindle Motor 35 hp
  • CNC Machines

    SVG-8743A-F

    Travel 86 x 43 x 35 in.
    Taper, RPM 50, 6k
    Tool Capacity 40 T
    Spindle Motor 35 hp
  • CNC Machines

    SVG-9943A-F

    Travel 98 x 43 x 35 in.
    Taper, RPM 50, 6k
    Tool Capacity 40 T
    Spindle Motor 35 hp

Linear Roller Pack Way VMC

Linear Roller Pack Way models offer reduced friction between slidding surfaces and increased acceleration and deceleration than box ways. It has better load support due to the line surface contact between surfaces compare to point contact in linear ball ways.

  • CNC Machines

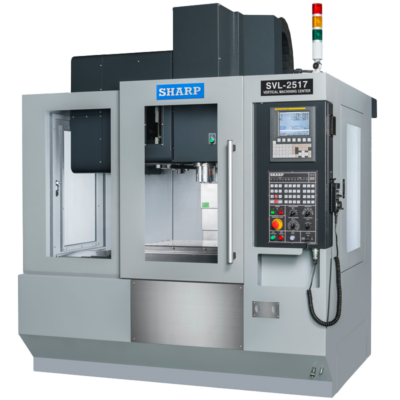

    SVL-2500-Series

    Travel 25.2 x 16.9 x 18.1, 25.2 x 16.9 x 23.6 in.
    Taper, RPM 40, 12k
    Tool Capacity 24 T
    Spindle Motor 10/15 hp
  • CNC Machines

    SVL-4023SX-F

    Travel 40.16 x 23.62 x 23.62 in.
    Taper, RPM 40, 10k/12k
    Tool Capacity 24T/30T
    Spindle Motor 10/15 hp
  • CNC Machines

    SVL-4500-Series

    Travel 45.3 x 25 x 20.1, 45.3 x 28 x 20.1 in.
    Taper, RPM 40, 15k
    Tool Capacity 30 T
    Spindle Motor 20/25 hp

Double Column Linear Roller Pack Way VmC

Besides being able to accommodate larger work pieces, Double Column construction machine offer exceptional stability during heavy cutting conditions. The Linear Roller Pack Ways contributes to high rapid traverse rate for fast positioning of heavy work piece.

  • CNC Machines

    SDC-8000-Series

    Travel 80.7 x 45.3 x 27.6 in.
    Table 86.6 x 39.4 in.
    Taper, RPM 40 & 50, 10k
    Tool Capacity 30 T, 32 T
    Spindle Motor 25 & 35 hp
