Milling Machines
Sharp Industries’ manual milling machines are designed to handle a variety of machining tasks with precision and efficiency. Our milling machines, including knee mills, bed mills, vertical/horizontal mills, and more, are built for durability and performance, making them suitable for a wide range of industrial applications.
YOU CAN CONTACT US BY 310-370-5990.
Types
Knee Type Vertical Milling Machines
SHARP Industries has improved upon the original design of knee mills to include features such as Double Nut Backlash Eliminator and Supporting Bearing at the bottom of the motor shaft. Models like the LMV-42 and TMV-DVS offer different sizes and configurations to meet diverse machining needs. These vertical knee mills provide accurate and reliable milling operations, making them an ideal choice for tool rooms, job shops, and production environments.
-
Knee Type Vertical Milling MachinesLMV-42
Long. Travel 30 in. Cross Travel 12 in. Taper, HP R-8, 3 hp Slide Ways Dove Tail Spindle Variable Speed -
Knee Type Vertical Milling MachinesLMV-49-DVS
Long. Travel 37 in. Cross Travel 12 in. Taper, HP R-8, 3 hp Slide Ways Dove Tail Spindle Digital Variable Speed -
Knee Type Vertical Milling Machines
LMV-50
Long. Travel 37 in. Cross Travel 12 in. Taper, HP R-8, 3 hp Slide Ways Dove Tail Spindle Variable Speed -
Knee Type Vertical Milling MachinesTMV
Long. Travel 39 in. Cross Travel 16.3 in. Taper, HP R-8, 3 hp Slide Ways Box Ways Spindle Variable Speed -
Knee Type Vertical Milling MachinesTMV-DVS
Long. Travel 39 in. Cross Travel 16.3 in. Taper, HP R-8, 3 hp Slide Ways Box Ways Spindle Digital Variable Speed -

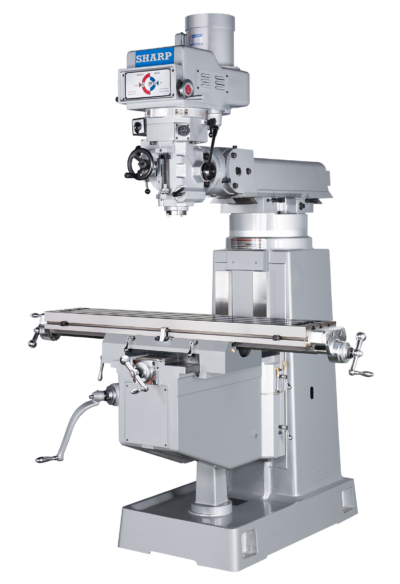

Knee Type Vertical Milling MachinesTMV-1
Long. Travel 39 in. Cross Travel 16.3 in. Taper, HP NT-40, 5 hp Slide Ways Box Ways Spindle Variable Speed -
Knee Type Vertical Milling MachinesV-1
Long. Travel 40 in. Cross Travel 16 in. Taper, HP NT-40, 5 hp Slide Ways Box Ways Spindle Digital Variable Speed
Knee Type Horizontal Milling Machines
Our knee type horizontal milling machines come with universal tables that can perform gear cutting and keyway machining. These versatile machines, such as the UH-3, provide flexibility for various milling operations. They are built to handle demanding tasks with ease, ensuring consistent performance and precision.
-
Knee Type Horizontal Milling MachinesUH-3-SMD
Long. Travel 39.37 in. Cross Travel 15.74 in. Taper, HP #50, 7.5 hp Slide Ways Box Ways
Knee Type Vertical / Horizontal Milling Machines
With two spindles on the same machine, our knee type vertical/horizontal milling machines can perform vertical and horizontal operations in one setup. This feature increases productivity and accuracy, making these machines ideal for maintenance tool rooms, job shops, or tool and die shops. Models like the VH-25 and VH-3 offer the versatility needed to tackle complex machining jobs efficiently.
-
Knee Type Vertical / Horizontal Milling MachinesVH-25-DVS
Long. Travel 39.37 in. Cross Travel 15.74 in. Vert. Taper, HP #40, 5 hp Horiz. Taper, HP #40, 5 hp -
Knee Type Vertical / Horizontal Milling Machines
VH-3-SMD
Long. Travel 39.37 in. Cross Travel 15.74 in. Vert. Taper, HP #40, 5 hp Horiz. Taper, HP #50, 7.5 hp
Request a quote and learn more details on our milling machines
Our series of manual milling machines include your vertical, horizontal, vertical/horizontal combined spindles. There are knee type and bed type mills ideal for all sizes of work pieces.
Bed Type Vertical Milling Machines
For large workpieces and hard metal machining, our heavy-duty bed type vertical milling machines handle the job easily. Models like the KMA-1 and KMA-3 offer substantial travel ranges and high horsepower to tackle demanding tasks. These machines provide the strength and stability required for precise milling operations, making them suitable for heavy-duty applications.
-
Bed Type Vertical Milling MachinesKMA-1
Long. Travel 39 in. Cross Travel 15 in. Vert. Head Travel 19.7 in. Taper, HP #50, 10 hp -
Bed Type Vertical Milling MachinesKMA-2
Long. Travel 47.3 in. Cross Travel 17.7 in. Vert. Head Travel 21.8 in. Taper, HP #50, 15 hp -
Bed Type Vertical Milling MachinesKMA-3
Long. Travel 59 in. Cross Travel 23.5 in. Vert. Head Travel 27.6 in. Vertical Taper, HP #50, 17.5 hp -
Bed Type Vertical Milling MachinesKMA-5
Long. Travel 79 in. (99 in. opt) Cross Travel 31.5 in. Vert. Head Travel 27.6 in. Taper, HP #50, 17.5 hp
Bed Type Vertical / Horizontal Milling Machines
Our bed type vertical/horizontal milling machines feature unique vertical and horizontal heads for greater productivity in complicated machining jobs. Models like the KMA-3H and KMA-5H provide the versatility needed for complex operations, combining the capabilities of vertical and horizontal milling in one machine. This design ensures that even the most challenging projects can be completed with precision and efficiency.
-
Bed Type Vertical / Horizontal Milling MachinesKMA-3H
Long. x Cross Travel 59 (79 Opt) x 23.6 in. Vert. Head Travel 27.5 in. Horiz. Head Travel 25.5 in. (up, down) Vert., Horiz. Taper, HP #50, #50, 17.5 HP, 7.5 HP -
Bed Type Vertical / Horizontal Milling MachinesKMA-5H
Long. Travel 79 in. (99 in. opt) Cross Travel 31.5 in. Vert. Head Travel 27-9/16 in. Taper, HP #50, #50, 17.5 HP, 7.5 HP
