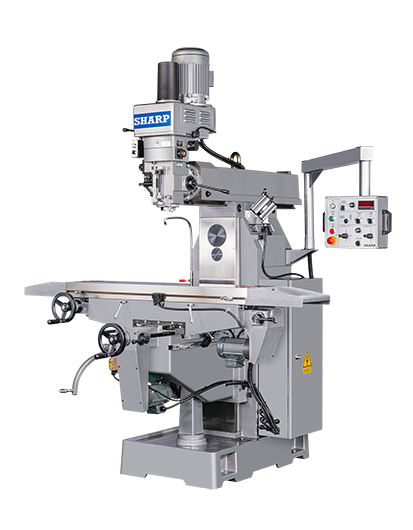

V-2-DVS

Long. Travel 39.37 in.
Cross Travel 15.74 in.
Taper, HP NT-40, 5 hp
Slide Ways Box Ways
Spindle Digital Variable Speed
Video
Request a Quote
Overview
Features
Specs
Accessories

Overview

The V-2-DVS, 3-axis Variable Feed Vertical Mill with Digital Variable Speed Head is built for heavy cutting. The boxways on the vertical column and top of base allow extra support to the table under hard machining. The top of the saddle is coated with TURCITE-B for better retention of oil and wear resistance.

  • 12 x 54 in. Table
  • 4-Way-Tilt Mill Head for Added Versatility
  • Power Feed on X, Y & Z Axis
  • Heavy-Duty, Box-Type Column
  • Meehanite Casting

Features

  • Air Power drawbar
  • Front-finned bellows cover (Y)
  • Automation lubrication system
  • X/Y/Z-axis gear motor, ½ HP
  • Table surface Hardened & Ground with Turcite-B (X/Y)
  • Spindle Shield
  • X/Y-axis Lead Screw
  • Back chip cover (Y)
  • Control panel
  • Coolant system (1/8 HP)
  • Splash Pan (Chip Tray)
  • Horizontal arbor (25.4mm) (1”)
  • Working lamp, 24V
  • Electric box
  • Toolbox and Tools

Product Video

  • Air Power drawbar
  • Front-finned bellows cover (Y)
  • Automation lubrication system
  • X/Y/Z-axis gear motor, ½ HP
  • Table surface Hardened & Ground with Turcite-B (X/Y)
  • Spindle Shield
  • X/Y-axis Lead Screw
  • Back chip cover (Y)
  • Control panel
  • Coolant system (1/8 HP)
  • Splash Pan (Chip Tray)
  • Horizontal arbor (25.4mm) (1”)
  • Working lamp, 24V
  • Electric box
  • Toolbox and Tools

Specs

CapacityInchMetric
Table Size53.93 x 11.81 in.1370 x 300mm
T-slots (No. x Width x Pitch)

3, 0.629, 2.75 in.

3, 16, 70 mm

Working surface to ground

51.1 x 15 x 11.8 in

1376 x 382 x 300 mm

Table Maximum Load Capacity

661 lbs.

300 kg

Table Travel: X Longitudinal

39.37 in.

1000 mm

Table Travel: Y Cross

15.74 in.

400 mm

Knee Travel: Vertical

18.5 in.

470 mm

Quill Travel

5.51 in.

140 mm

Ram Travel

27.5 in.

700 mm

Ram Swivel

360°

360°

HEAD, SPINDLE

INCH

METRIC

Spindle Taper

NT40

NT40

Spindle Speeds (Variable)

60-4,500 rpm (Inverter)

60-4,500 rpm (Inverter)

Spindle Motor

5 HP

3.7 Kw

Quill Feeds (3 speeds)

0.0015, 0.0031, 0.0059 in.

0.04, 0.08, 0.15 mm

Quill Diameter

4.13 in.

105 mm

Spindle Center to Column

7.08 - 34.64 in.

180-880 mm

Spindle Nose to Table

3.93-22.44 in.

100-570 mm

Vertical Head Swivel (L to R)

90°


Vertical Head Tilt (Up and Down)

Fixed


TABLE FEEDS, RAPIDS

Inch Metric

Longitudinal Feeds

1.18-39.37 in./min

30-1000 mm/min

Cross Feeds

1.18-39.37 in./min

30-1000 mm/min

Vertical Feeds

1.96-20.07 in./min

50-510 mm/min

General Inch Metric

Power Consumption (220V)

7 KVA/ 30amp


Power Consumption (440V)

7 KVA/ 15amp


Wiring Voltage

220V/ 3Ph/ 60Hz

Gross Weight (Approx)

5291 lbs.

2400 kg

Machine Dimensions (L×W×H)

95.2 x 82.6 x 103.1 in.

2420 x 2100 x 2620 mm

Floor Area (W x D x H)

89.37 x 122 x 99.2 in.

2270 x 3100 x 2620 mm

All specifications subject to change without notice. Please call to verify.

Accessories

Optional Accessories

    • Transformer for 440V
    • 6” – “Kurt” Vise with Swivel Base D688
    • Drill Chuck & Drill Arbor
    • Clamping Kit (52 pcs/steel rack)
    • Halogen Work Light
    • Rear splash guard
    • Working table splash guard

Packages

  • Air Power drawbar
  • Front-finned bellows cover (Y)
  • Automation lubrication system
  • X/Y/Z-axis gear motor, ½ HP
  • Table surface Hardened & Ground with Turcite-B (X/Y)
  • Spindle Shield
  • X/Y-axis Lead Screw
  • Back chip cover (Y)
  • Control panel
  • Coolant system (1/8 HP)
  • Splash Pan (Chip Tray)
  • Horizontal arbor (25.4mm) (1”)
  • Working lamp, 24V
  • Electric box
  • Toolbox and Tools
