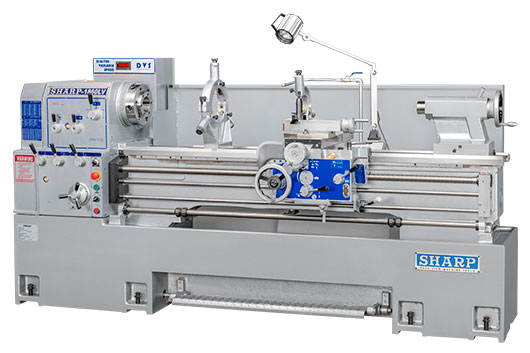

1860LV
| Swing | 18 in. |
|---|---|
| Center Distance | 40, 60 & 80 in. |
| Bore, HP | 3.1 in., D1-8, 7.5 hp |
| Spindle Speed | 20 – 2,000 rpm (2), vari. |
Overview
This model is designed with 3.18” spindle hole which is unique for 18” swing lathes. Due to its one piece casting machine base, it can support heavier cutting on large diameter materials. The large through hole allows most 3” diameter oil pipes to be machined. The variable speed spindle allows easy change of speeds.
- 18″ x 60″, geared head, D1-8 camlock, 3.18″ bore, 7.5 HP, vari speed 20-2,000 rpm (Hi, Low)
- Direct selection for inch/metric threads
- One piece Meehanite casting bed
Product Video
Features
- 3.18” spindle bore , largest spindle in this size lathes. More choices for different diameter of materials to be machined.
- All headstock gears are hardened and ground made from Chrome-Moly material gives long lasting power and accuracy in machining
- One piece casting bed instead of sheet metal connected legs ensure dampening of vibration and permanent straightness of the bed ways.
- The carriage and cross slide ways are lubricated by push button knobs.
- The removable gap increases the swing by an extra 8” to accommodate larger work pieces that are short in length
- 5 position carriage stop for pre-positioning of carriage feed distance.
- “Tang” in tail stock for easy “knock out” of centers in tailstock
Special package is available that includes 2 axis Digital Readout, Chuck guard with limit switch, steady rest, follow rest and work light
The Digital Variable Speed spindle allows easy change of speeds by just turning a knob. The headstock is equipped with High/low gear for light/heavy operations.
- All headstock gears are hardened and ground made from Chrome-Moly material gives long lasting power and accuracy in machining
- High precision pair of matched angular contact bearings supporting the front end of head stock, and rolling bearing for the rear end support. This arrangement allows high accuracy of the spindle even under heavy cutting conditions.
- Wide range of feeds and threads. Selection done by “pull and lock” handles to avoid slipping in engagement of gears.
- Jog button is equipped at headstock for easy engagement of gears before cutting
Specs
Capacity | Inch | Metric |
|---|---|---|
| Swing Over Bed | 18 in. | 457 mm |
| Swing Over Cross Slide | 10.2 in. | 259.08 mm |
| Swing Over Gap | 27.12 in. | 688.8 mm |
Gap Width (In Front Of Face Plate) | 11.75 in. | 298.4 mm |
| Distance Between Centers | 60 in. | 1,524 mm |
Headstock | Inch | Metric |
|---|---|---|
| Spindle Speed | Hi: 235-2,000 rpm Low: 20-170 rpm | Hi: 235-2,000 rpm Low: 20-170 rpm |
| No. of Spindle Speeds | 12 | 12 |
| Spindle Nose | D1-8 camlock | D1-8 camlock |
| Spindle Bore | 3.06 in. | 77.7 mm |
Threads and Feeds | Inch | Metric |
|---|---|---|
Threads, Number | 4-56 tpi, 36 | 0.5-7 mm, 17 |
| Diametral Pitch Threads, Number | 0.157-2.20 in, 36 | 4-56 mm, 36 |
| Longitudinal Feeds | 0.002-0.032 in./rev | 0.05-0.82 mm/rev |
| Cross Feeds | 0.0001-0.0094 in./rev | 0.02-0.4 mm/rev |
| Leadscrew Pitch, Diameter | 4 tpi, 1.37 in. | 4 tpi, 1.37 in. |
Carriage | Inch | Metric |
|---|---|---|
Cross Slide Travel | 10.8 in. | 275 mm |
| Compound Travel | 4.9 in. | 124.4 mm |
| Compound Width | 5 in. | 127 mm |
Bed | Inch | Metric |
|---|---|---|
| Bed Length | 79 in. | 2,006.6 mm |
| Bed Width | 11.75 in. | 298.4 mm |
Tailstock | 1860LV | 1880LV |
|---|---|---|
| Quill Diameter | 2.68 in. | 68.07 mm |
| Quill Travel | 5.5 in. | 139.7 mm |
| Quill Center Taper | MT #4 | MT #4 |
General | Inch | Metric |
|---|---|---|
| Spindle Motor | 7.5 HP | 5.59 Kw |
| Voltage | 230V/460V | 230V/440V |
| Phase | Single or 3 Phase | 3 phase |
| Power Consumption ( 230 V) | 8KVA/25 amps | 8KVA/25 amps |
| Power Consumption (460 V) | 8KVA/12.5 amps | 8KVA/12.5 amps |
| Approximate Weight | 4,500 lbs. | 2,041.1 Kg |
| Dimensions | 8.69 x 2.65 x 4 ft. | 2.65 x 0.80 x 1.21 M |
All specifications subject to change without notice. Please call to verify.
Accessories
Standard Accessories
- 3-jaw 10″ chuck, 12” face plate, steady rest
- Removeable gap, back plate
- Coolant system, American tool post
- Full length splash guard
- Center sleeves, dead center, tool kit
- • wired 220V or 440V
Optional Accessories
- 3-jaw 12″ chuck
- 4-jaw 12″ chuck
- Chuck guard
- Tool guard (at front of compound slide with limit switch)
- Lead screw cover (full length, accordion style)
- Safety cover at end of spindle
- UL or CSA electrical components, UL spindle motor, CSA pump motor
