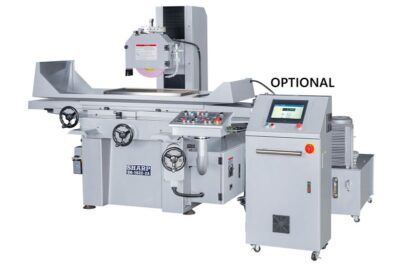

SG-820-2A

Table Size	8 x 20 in.
Max Grind Size	8.7 x 21.7 in.
Center Height	16 in.
Spindle HP	2 hp

Request a Quote

Overview

The model has hydraulic table feed and motorized cross saddle feed. Besides regular surface grinding it can perform slot grinding.

8″ x 20″ table, 9.2″ x 23.6″ travel,2 HP
Ball screw on crossfeed
Advanced hydraulic system w/ independent oil tank for vibration free table
Slide ways are hand scraped and coated w/ TURCITE
Automatic crossfeed
Accurate slot-grinding capability
Double “V” way cross travel
One “V”, one flat way longitudinal travel

Features

Honey combed shape ribs design

Honey combed shape ribs design assures long lasting table straightness without any twisting and deformation due to thermal expansion or cutting pressure. Bottom of the grinding table is hand scraped for fitness. One V and one flat ways ensure precise movement of the table.

long lasting accuracy

Casting of the vertical column and the spindle is annealed for long lasting accuracy. Cartridge type spindle unit equipped with high precision preloaded angular contact bearings (ABEC 7) and direct drive motor of V3 vibration class to assure accurate grinding operations

Optional overhead dresser

Optional overhead dresser greatly enhance the process in dressing the wheel. Automatic overhead dresser is also available as an option.

Specs

Capacity	Inch	Metric
Max Grinding Length	21.7 in.	551.18 mm
Max Grinding width	8.7 in.	220.98 mm
Max Distance : Table to Spindle Center	15.7 in.	398.78 mm

Table	Inch	Metric
Table Size	8 x 20 in.	203.2 x 508 mm
Longitudinal Travel	23.6 in.	599.4 mm
Cross Travel	9.25 in.	234.9 mm

Longitudinal Feed Of Table	Inch	Metric
Hand Feed per revolution	2.7 in.	68.58 mm
Hydraulic Feed	3.3-82 ipm	83.82 - 2,082.8 mm

Cross Feed Of Saddle	Inch	Metric
Hand Feed Per revolution	0.2 in.	5.08 mm
Hand Wheel Graduation	0.0005 in.	0.0127 mm
Intermittent Feed	0.006-0.4 in.	0.152 - 10.16 mm
Continuous Traverse Feed	47 ipm	1,193.8 mm/min.

Vertical Feed of Wheel	Inch	Metric
Hand Feed Per revolution	0.05 in.	1.27 mm
Hand Wheel Graduation	0.0001 in.	0.00254 mm

Grinding Wheel	Inch	Metric
Outside Diameter	8 in.	203.2 mm
Wheel Bore	1.25 in.	31.75 mm
Wheel Width	0.5 in.	12.7 mm

Motors	Inch	Metric
Spindle	2 HP	1.49 Kw
Hydraulic Table	1 HP	0.75 Kw

General	Inch	Metric
Floor Area (W x H x L)	6.91 x 4.91 x 6.5 ft.	2.10 x 1.49 x 1.98 M)
Approximate Weight	2,600 lbs.	1,179.3 Kg)
Power Consumption (220V)	4KVA/11 amps	4KVA/11 amps
Power Consumption (440V)	4KVA/5.5 amps	4KVA/5.5 amps

All specifications subject to change without notice. Please call to verify.

Accessories

Standard Accessories

Grinding wheel
Kanetsu chuck with coolant system (12 gal) and splash guard
Auto-lube system
Wheel adapter/flange
Wheel balancing arbor
Work light
Diamond dresser
Tool kit
Wired 220V or 440V
Fully loaded special package available

Optional Accessories

- Permanent magnetic chuck (fine pole)
- Electro-magnetic chuck (fine pole) w/ control
- Overhead manual parallel dresser
- Balancing stand
- Extra wheel adapter (flange)
- Dust collector
- Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V
- Digital Readout System
- CE mark
