LMV-49-SMD

Long. Travel 37 in.
Cross Travel 12 in.
Taper, HP R-8, 3 hp
Slide Ways Dove Tail
Spindle Digital Variable Speed
Video
Request a Quote
Overview
Features
Specs
Accessories
Packages

Overview

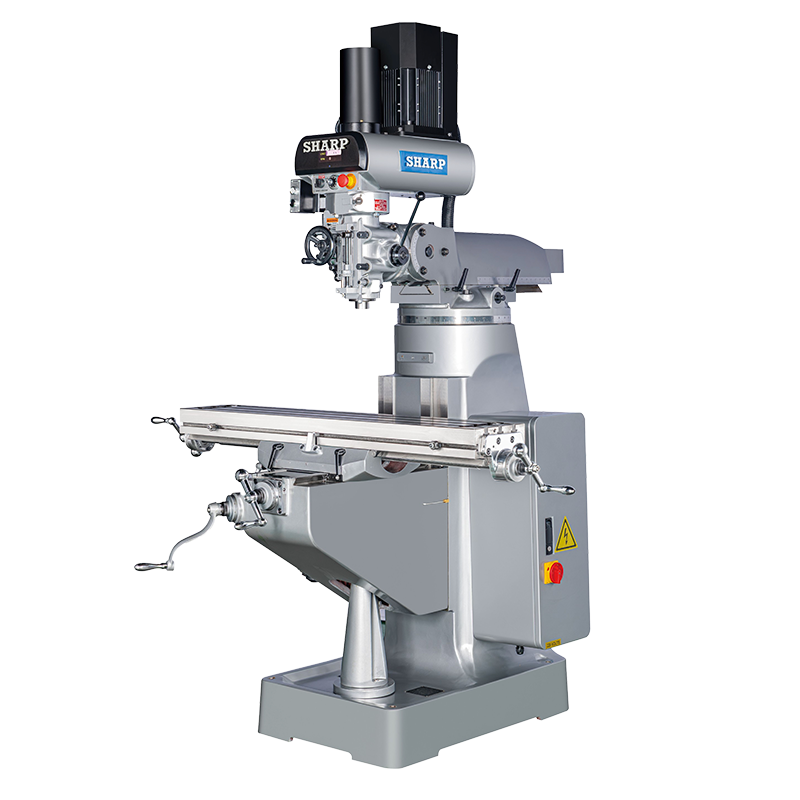

The NEW SHARP LMV-49-SMD is a newly designed knee-type vertical milling machine that integrates a Servo Motor Drive with many outstanding and unique features, making it the best choice on the market.

  • The R-8 spindle is driven by a servo motor, providing a speed range of 65 to 4,500 rpm.
  • An 8.5kW spindle motor that is equivalent to an 11HP drive, which will increase productivity via larger depths of cuts in milling, drilling, boring, and tapping applications.
  • Fewer working parts to maintain by eliminating High/Low transmission gears, so the mill is easier to operate, and extends the life of the machine.
  • Adjusts the speed and torque dynamically, allowing it to run quieter and with less vibration than traditional variable speed drive mills for improved surface finish and extended tool life.
  • Comes with a digital display, and the speed change is controlled by turning a dial to the desired speed.
  • Comes standard with a load meter, which provides real-time monitoring of spindle power usage, offering several benefits like preventing tool breakage, improving cutting conditions, and optimizing machine performance
  • High Performance in Intermittent Use – Servo motors are ideal for applications with start-stop operations. They can ramp up and down quickly without consuming excessive energy.
  • Low Energy Loss – Servo motors are designed to minimize energy loss due to heat and friction, contributing to their overall efficiency.
  • The mill comes equipped with a transformer located in the electrical control cabinet which conveniently provides 110V power to DRO or X, Y, Z-Knee power feeds.
  • Table size: 9″ × 49″
  • Travel: 36″ longitudinal, 12.2″ crossTable Size 9” x 49”
  • Table Travel 36” X-Axis & 12.2 Y-Axis
  • Power Draw Bar
  • Meehanite Casting
  • Front & Rear Way Covers
  • One Shot Lubrication System

Features

Servo Motor Drive

  • The spindle is driven by a servo motor, providing a speed range of 65 to 4,500rpm.
  • High Performance in Intermittent Use – Servo motors are ideal for applications with start-stop operations. They can ramp up and down quickly without consuming excessive energy.
  • Low Energy Loss – Servo motors are designed to minimize energy loss due to heat and friction, contributing to their overall efficiency.
  • The Servo Motor Drive features an 8.5kW spindle motor (equivalent to 11 HP), delivering increased productivity through the ability to take larger depths of cut in milling, drilling, boring, and tapping applications.
  • The Servo Motor Drive eliminates high- and low-speed transmission changes, reducing wear on parts in the head of the machine and making the mill easier to operate.
  • The Servo Motors Drive adjusts the speed and torque dynamically, allowing it to run quieter and with less vibration than traditional variable speed drive mills for improved surface finish and extended tool life.

PRECISION QUILL

  • The machine is equipped with an R-8 spindle that has 5 inches of quill travel.
  • The Quill is hard chrome-plated and mounted on a matched pair of high precision angular contact bearings, ensuring spindle runout does not exceed two ten-thousandths of an inch of Total Indicator Runout (TIR).

SPINDLE SPEED AND LOAD DISPLAY

  • The spindle speed has a digital display, so the speed change is controlled by just turning a dial to the desired speed, and the load meter provides real-time monitoring of spindle power usage, offering several benefits like preventing tool breakage, improving cutting conditions, and optimizing machine performance.

Power Draw Bar

  • The machine is equipped with a standard power drawbar, allowing for quick and effortless tool changes.

HIGH QUALITY CAST IRON

  • The structural components of the machine are made from Meehanite castings, ensuring long-term stability, durability, machinability, and excellent vibration damping.

HARDENED & GROUND SLIDEWAYS

  • The hardened and ground X and Y-axis ways are coated with Turcite-B, providing resistance to lubricants and coolants for extended service life and reduced wear.

NO END PLAY OR LATERAL MOVEMENT OF THE TABLE

  • Precision thrust bearings mounted at the table end eliminate end play, resulting in smoother motion and improved travel accuracy.

BACKLASH ELIMINATION

  • Backlash is eliminated through Sharp’s double-nut design, which maintains full contact between a pair of bronze nuts and the precision-ground leadscrew, ensuring smooth table travel and improved accuracy.

WAY COVERS

  • Durable front and rear rubber way covers provide reliable protection against chips, coolant, and contamination, ensuring long machine life.

HEAD SWIVELING AND TILTING

  • Enhanced flexibility, the milling head swivels a full 360°, tilts 90° to the right or left, and angles 25° upward or 45° downward to accommodate a wide range of angular machining operations.

PATENTED KNUCKLED HEAD DESIGN

  • The exclusively designed knuckled head uses six bolts and is fitted into the circular T-slots to prevent the head from slipping.

ELECTRICAL CONTROL CABINET

  • The mill comes equipped with a transformer located in the electrical control cabinet which conveniently provides 110V power to DRO or X, Y, Z-Knee power feeds.

ONE SHOT LUBRICATION SYSTEM

  • The One-Shot Lubrication System, equipped with a backflow valve, ensures consistent lubrication of all ways and lead screws on the X, Y, and Z axes.

Specs

Capacity Inch Metric
Table Size9 x 49 in. 230 x 1244 mm
T-slots (No., Size, Pitch)3, 5/8, 2.5 in. 3, 16, 63.5 mm
Table Travel : X Longitudinal36.6 in. 929 mm
Table travel : Y Cross12 in.304 mm
Quill travel: Z Vertical 5 in. 127 mm
Knee travel : Vertical16 in. 406 mm
Ram Travel 12 in. 304.8 mm
Spindle Center to Column6.75 - 18.5 in.

171 - 470 mm

Spindle Nose to Table Top2.125 - 18 in. 3.1 - 457 mm
Head, Spindle Inch Metric
Spindle Nose TaperR-8 R-8
Spindle Variable Speed Range65-4500 rpm 65-4500 rpm
Spindle Motor (220V/440V)

11 HP


Quill Feed (Inch/Rev)(3 speeds)

.0015, .003, .006 in..038, .076, .152 mm
Quill Diameter3.375 in. 85.7 mm
Head Swivel Angle360°
Head Tilt Angle (L/R)45°
Head Tilt Angle (Up/Down)45°

General

Inch Metric
Floor Area (W x D x H)   7 x 6.5 x 6.75 ft.2.1 x 2 x 2 M
Approximate Weight2,100 lbs. 952 Kg.
Power Consumption (220V)

3 KVA/15 amps
Power Consumption (440V)

3 KVA/8 amps

Single Phase

3KVA/25amps

All specifications subject to change without notice. Please call to verify.

Accessories

Standard Accessories

  • One Shot Lube System
  • Hard-Chromed Ways
  • Front and Rear Rubber Way Covers
  • Tool box with tools
  • Wired 220V or 440V.

Optional Accessories

  • Auto Lube Pump with 2 Adjustments
  • “Sharp” Power Table Feed with Safety Handle
  • “Sharp” Power Cross Feed with Safety Handle
  • “Sharp” Power Knee Feed with Safety Handle
  • 6 ins “Kurt” Vise with Swivel Base
  • Right Angle Milling Attachment with Arbor
  • Drill Chuck & Drill Arbor
  • 6 in. Riser Block
  • Coolant System with Chip Pan (pump included
  • “Maxi Torque Rite” Power Draw Bar
  • Clamping Kit (52 pcs/Steel Rack)
  • Halogen Work light
  • CE mark
  • 380V and 575V transformer
  • UL components upgrade with electrical box
  • UL compliance certificate under State of California
  • Digital Readout System
