1640-PLC-2N
| Swing | 16 in. |
|---|---|
| Center Distance | 40 in. |
| Spindle Speed | 10-2,000 RPM |
| Bore, HP | 3.39 in., 9.4 hp |
| Spindle | Servo Motor Drive |
Overview

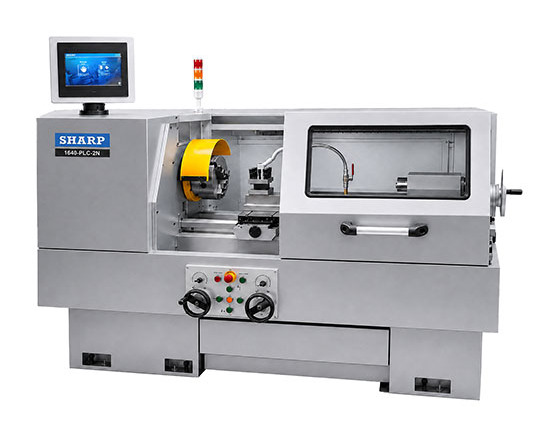

The 1640-PLC-2N AutoAssist Lathe is the first in its class, offering conversational programming that transforms traditional turning operations with simplicity and productivity.
For machining, this 16” x 40” lathe offers ample capacity for both small and medium-sized workpieces. It features a powerful 7kW servo motor directly driving the spindle, delivering smooth and efficient performance without the need for belts or gear reductions.
For productivity, it features the NEW Sharp AutoAssist touchscreen control. With Sharp AutoAssist, shops can increase manual machining productivity by up to 70%.
Features
Automatic or Manual Mode
AutoAssist gives machinists the flexibility to operate the lathe in manual or automatic mode and inch or metric measurements.
By using a touchscreen combined with a physical control panel, its designed to add value and enhanced functionality to conventional lathes.
8 Conversational Turning Applications
AutoAssist comes standard with eight conversational turning applications, allowing operators to produce parts faster with less programming effort.
- 0D Turning
- Face Turning
- Taper Turning
- Straight Threading
- Tapered Threading
- Chamfering & Corner Turning
- Grooving/Parting
- Drilling
Automatic Machining Parameter Filling
Built-in cutting conditions tailored for various materials allow the system to automatically generate optimal machining parameters based on the user’s selected material and part geometry.
Automatic Thread Cutting
One of the most difficult jobs on a manual machine is thread cutting. With Sharp AutoAssist, you simply select the thread you want, whether inch or metric, and the threading speed is 4 to 8 times faster than conventional threading. It can machine workpieces with an angle without the need to install a taper attachment.
Taper Turning Without Attachment
This machine is capable of taper turning without the need for a taper attachment, simplifying operation while maintaining high accuracy and eliminating additional equipment costs.
Built-in File Storage
Save programs after completion with auto-file, ideal for those high-mix, low volume environments. Program it once, save it, and recall jobs whenever you need to make another one-off or small part-run.
Product Video
Automatic or Manual Mode
AutoAssist gives machinists the flexibility to operate the lathe in manual or automatic mode and inch or metric measurements.
By using a touchscreen combined with a physical control panel, its designed to add value and enhanced functionality to conventional lathes.
8 Conversational Turning Applications
AutoAssist comes standard with eight conversational turning applications, allowing operators to produce parts faster with less programming effort.
- 0D Turning
- Face Turning
- Taper Turning
- Straight Threading
- Tapered Threading
- Chamfering & Corner Turning
- Grooving/Parting
- Drilling
Automatic Machining Parameter Filling
Built-in cutting conditions tailored for various materials allow the system to automatically generate optimal machining parameters based on the user’s selected material and part geometry.
Automatic Thread Cutting
One of the most difficult jobs on a manual machine is thread cutting. With Sharp AutoAssist, you simply select the thread you want, whether inch or metric, and the threading speed is 4 to 8 times faster than conventional threading. It can machine workpieces with an angle without the need to install a taper attachment.
Taper Turning Without Attachment
This machine is capable of taper turning without the need for a taper attachment, simplifying operation while maintaining high accuracy and eliminating additional equipment costs.
Built-in File Storage
Save programs after completion with auto-file, ideal for those high-mix, low volume environments. Program it once, save it, and recall jobs whenever you need to make another one-off or small part-run.
Specs
| Capacity | Inch | Metric |
|---|---|---|
| Swing Over Bed | 16 in | 406 mm |
| Swing Over Cross Slide | 9.25 in | 235 mm |
| Distance Between Centers | 40 in | 1000 mm |
| Max. Length for Workpiece | 34.25 in | 870 mm |
| Maximum weight of workpiece (chuck) | 286.60 lb | 130 kg |
| Maximum weight of workpiece (chuck + tailstock) | 617.29 lb | 280 kg |
| Center Height | 8.66 in | 220 mm |
| Headstock | Inch | Metric |
|---|---|---|
| Spindle Bore | 3.39 in | 86 mm |
| Spindle Nose/Taper | D1-8 Camlock MT-7 | D1-8 Camlock MT-7 |
| Spindle Speed | 10-2000 RPM | 10-2000 RPM |
| Spindle Center to Ground | 42 in | 1070 mm |
| Feeds | Inch | Metric |
|---|---|---|
| Z Rapid travel (m/min) | 236.22 in/min | 6 m/min |
| X Rapid travel (m/min) | 314.96 in/min | 8 m/min |
| Ball screw (Z axis): diameter / pitch | �1.26 in pitch 0.20 in | �32 mm pitch 5 mm |
| Ball screw (X axis): diameter / pitch | �0.98 in pitch 0.20 in | �25 mm pitch 5 mm |
| Bed | Inch | Metric |
|---|---|---|
| Bed Length | 78.74 in | 2000 mm |
| Bed Width | 12.99 in | 330 mm |
| Tailstock | Inch | Metric |
|---|---|---|
| Tailstock Quill Diameter | 2.95 in | 75 mm |
| Quill Travel | 5.91 in | 150 mm |
| Tailstock Quill Center Taper | MT-5 | MT-5 |
| Motor | ||
|---|---|---|
| Spindle Motor | 9.4 HP | 7 kW |
| Servo Motor for X/Z axis | 1.34/2.01 HP | 1/1.5 kW |
| Coolant pump | 1/8 HP |
| General | |
|---|---|
| Power Consumption (220V) | 10.3 kVA |
| Tank capacity | 65 L |
| Wiring Voltage | 220V / 3Ph / 60Hz |
| Measurement | Inch | Metric |
|---|---|---|
| Net Weight (Approx) | 3858 lb | 1750 kg |
| Gross Weight (Approx) | 4012 lb | 1820 kg |
| Machine Dimensions (LxWxH) | 100 x 61 x 70 in | 2667 x 2108 x 1778 mm |
All specifications subject to change without notice. Please call to verify.
Accessories
Standard Accessories
- 4-way tool post (Manual)
- Coolant System
- Center Sleeve MT5
- Safety guard (includes: Chuck guard, one sliding door in front)
- LED tube lamp
- Toolbox and adjusting tool
Optional Accessories
- 3-jaw 10” chuck
- 4-jaw 10” chuck
- Steady Rest
- Drill Chuck & Arbor
- Drilling Attachment
- Boring Attachment
- Collet Closer
- 440V Transformer
- UL Certification
Packages
We program it. You make the parts.
Take the guesswork out of complex part production. Our experienced applications engineers can create custom PLC programs for multi-step machining processes, automated sequencing, and specialized operations.
Available as a professional programming service, we’ll configure, sequence, and optimize your machine so it’s ready to produce parts efficiently from day one, helping reduce setup time, minimize errors, and get you into production faster.
