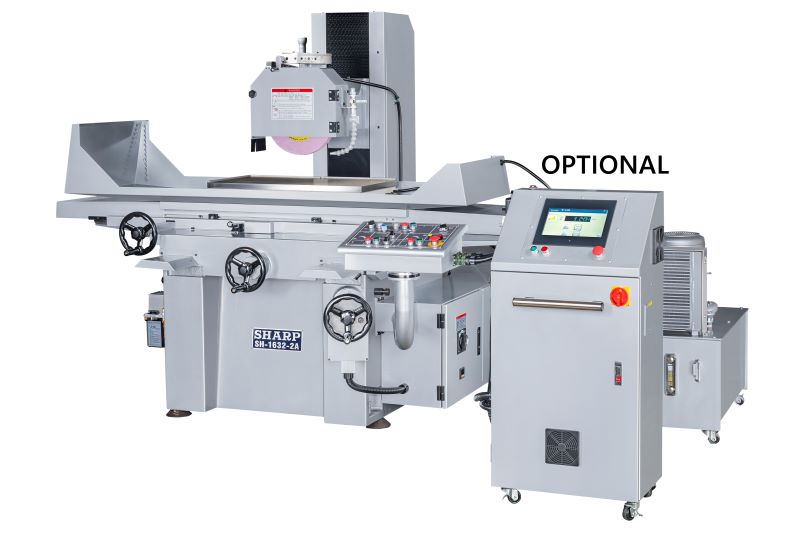

SH-1632

Auto infeed (Y), auto longitudinal feed (X)
Manual downfeed (Z), 2 V ways under table,
Optional : Servo driven downfeed system (Z)

  • Two longitudinal V ways and two cross V ways for maximum rigidity.

  • The length of the bed way is more than twice that of the work table to ensure no overhang of table during different grinding conditions.

  • Automatic cross feed with intermittent and continuous mode.

  • Slide ways are hand scraped and TURCITE coated for higher wear resistance.

  • High precision spindle is supported by multiple anti-friction bearings adjusted radially and axially for greatest accuracy. They are permanent sealed with high quality grease for minimum maintenance.

  • Bed and base castings are twice annealed to relieve stress and to ensure accuracy.

  • Hydraulic table movement is controlled by unique directional valve that minimize vibrations.

  • Automatic lubrication system.

  • Optional programmable spindle down feed system with user friendly control.

  SH-920 SH-1224 SH-1632 SH-1640
Table travel (cross x longitudinal) 11" x 27.6” 14" x 27.6" 17.6" x 36" 17.6" x 44"
Spindle center to table surface 19.3" 19.3" 23.6" 23.6"
Table working surface 9" x 19.7” 11.6" x 23.6" 15.8" x 32" 15.8" x 40"
Longitudinal hydraulic table feed (ft/min) 6.6-82 6.6-82 6.6-82 6.6-82
Intermittent cross feed (in./min) 0.004-0.4 0.004-0.4 0.004-0.4 0.004-0.4
Continuous Cross Feed (in/min) 39 39 39 39
Number of graduations on dial 200 200 200 200
Feed per graduation 0.0005” 0.0005” 0.0005” 0.0005”
Feed per revolution 0.1” 0.1” 0.1” 0.1”
Vertical Travel
Number of graduations on dial 500 500 500 500
Feed per graduation 0.0001” 0.0001” 0.0001” 0.0001”
Feed per revolution 0.05” 0.05” 0.05” 0.05”
Rapid down feed (optional)(in./min) 18.9 18.9 18.9 18.9
Wheel size (OD x Width x ID) 14"x1" x5" 14"x "x5" 14"x1-1/2"x5" 14"x2"x5"
Spindle motor 3 HP 3 HP 5 HP 5 HP
Coolant system 1/8 HP 1/8 HP 1/8 HP 1/8 HP
Approximate weight 3,800 4,700 7,300 7,600
Packing crate dimensions (W x D x H) 7' x 5' x 6' 7-1/2' x 5' x 6' 8' x 6' x 7' 8’ x 6' x 7'

Standard Accessories

  • Grinding wheel (14”x1.25”x5”, 14” x 1.5” x 5”)
  • Wheel adapter/flange
  • Auto lube system
  • Coolant system (12 gal., 25 gal)
  • Work light
  • Balance arbor
  • Diamond dresser
  • Tool kit

​THE PROGRAMMABLE SPINDLE DOWNFEED SYSTEM (optional)

The system is built specifically for the surface grinder to take over the control of spindle wheel downfeed movement. The numerical control system allows the operator to synchronize spindle vertical feed with longitudinal and cross feed of table for various grinding modes, such as plunge grinding or slot grinding.​

Optional Accessories

Programmable spindle downfeed system Electro magnetic chuck Fine pole electro magnetic chuck Parallel dresser (manual) Parallel dresser (semi-automatic) Radius forming attachment Angle forming attachment Wheel head rapid up and down Coolant system (25 gal.) with paper filter Coolant system (25 gal.) with dust collector Coolant system (25 gal.) with paper filter and magnetic separator (for SH-920 & SH-1224) Coolant system (30 gal.) with paper filter and magnetic separator (for SH-1632 & SH-1640) Dust collector Filter paper (refill) Digital Readout Systems

Please contact our parts department at 310-370-5990.
